Below you can see some of the typical equipment All Venturi Equipment Ltd is able to offer.

Syphons & Eductors

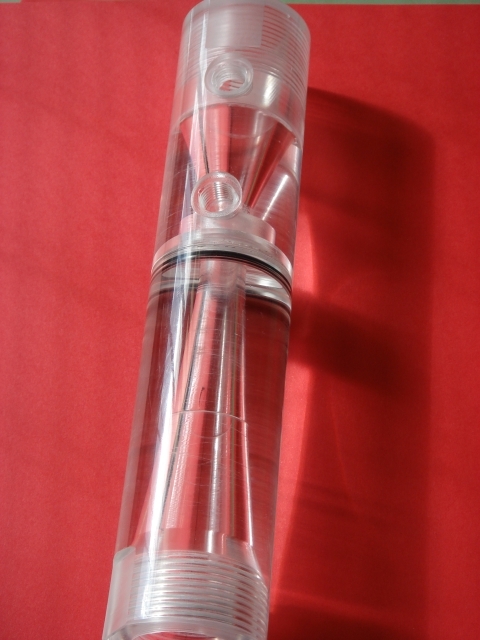

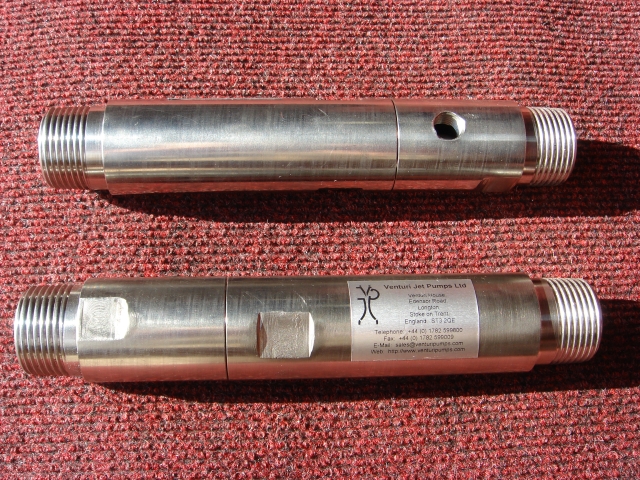

Type 220 Inline Syphon - Typical uses include entraining powders or granular solids, or priming applications. Units are usually operated with compressed air. See here for further information.

Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

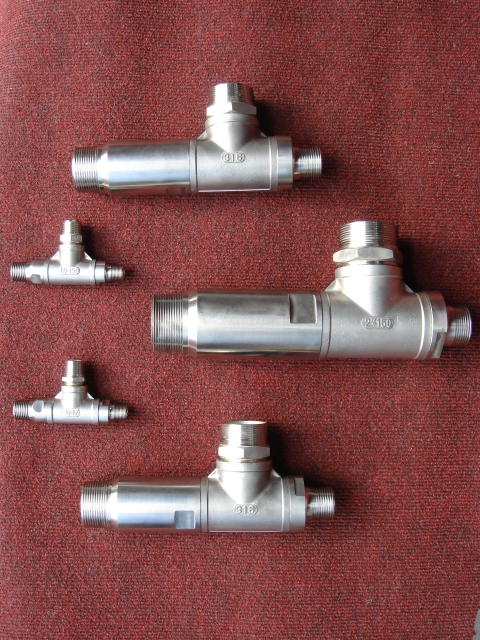

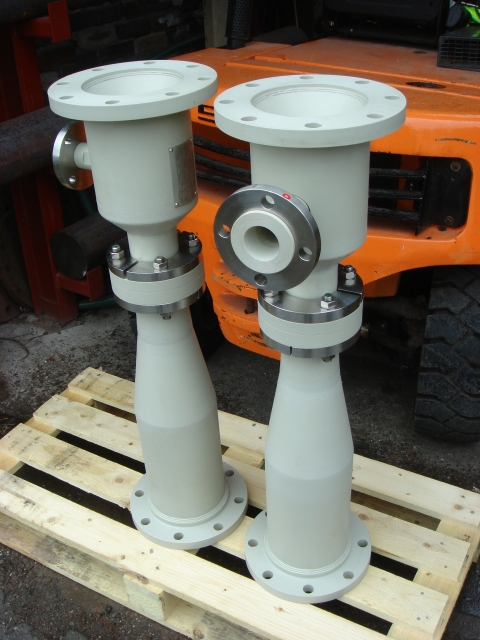

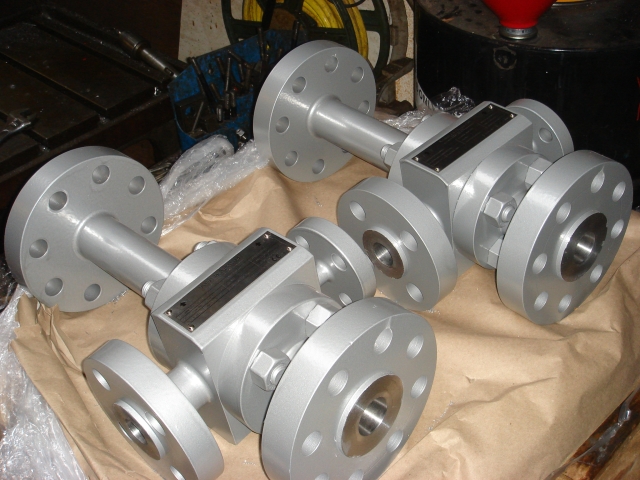

Type 264 Liquid Jet Eductor & Type 217 Steam Jet Syphon - Typical uses include pumping liquids, mixing liquids, emptying sumps and bunds. See here for information on Eductors or here for Syphons.

Type 264 Liquid Jet Eductor - Polypropylene Type 264 Liquid Jet Eductor with ANSI 1500Lb Flanges Type 264 Liquid Jet Eductor - Various sizes
(Click image to enlarge, opens a new window)

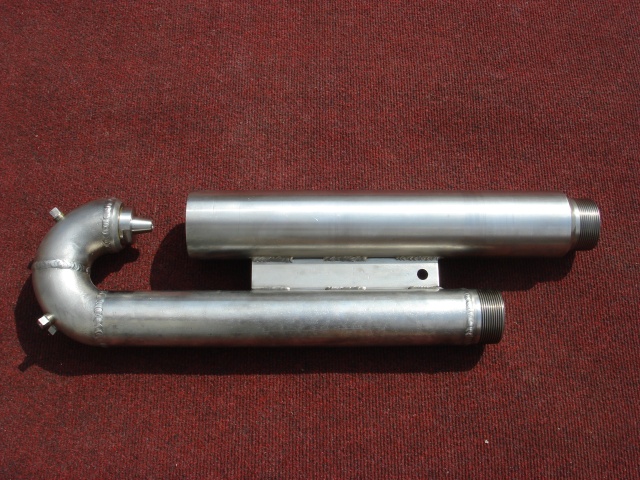

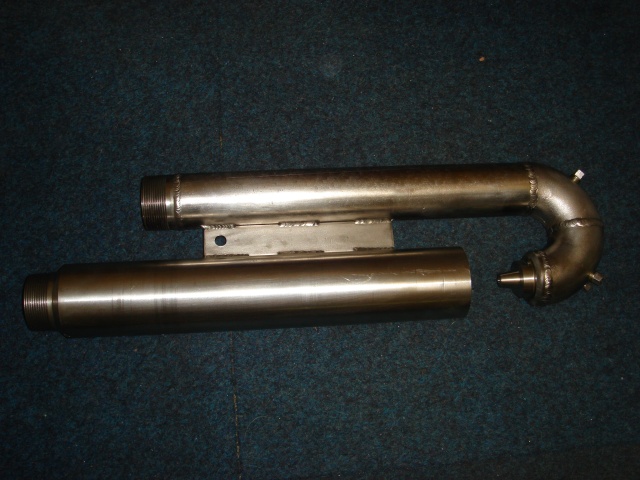

Type 224 Sand & Mud Eductor - Typical uses include emptying sumps or bunds, removing sand or silt from bore holes and emptying balast tanks. See here for further information.

Type 224 Sand and Mud Eductor Type 224 Sand and Mud Eductor
(Click image to enlarge, opens a new window)

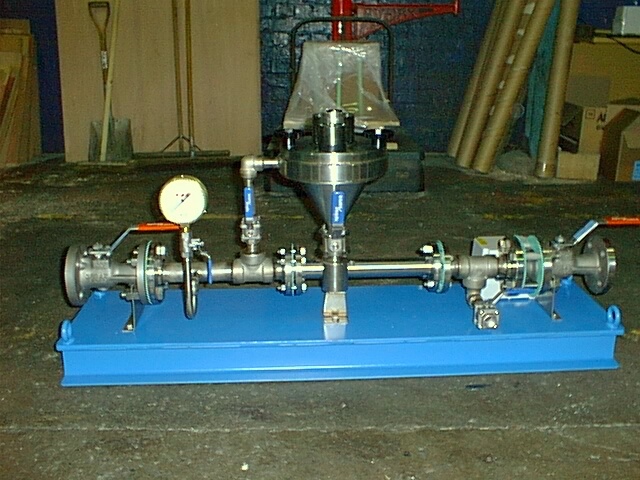

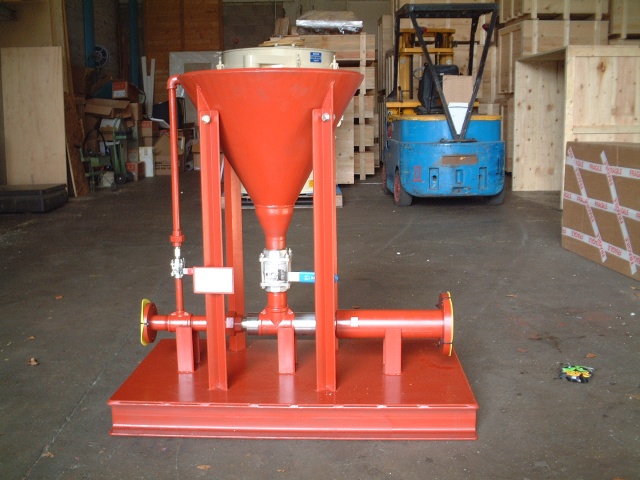

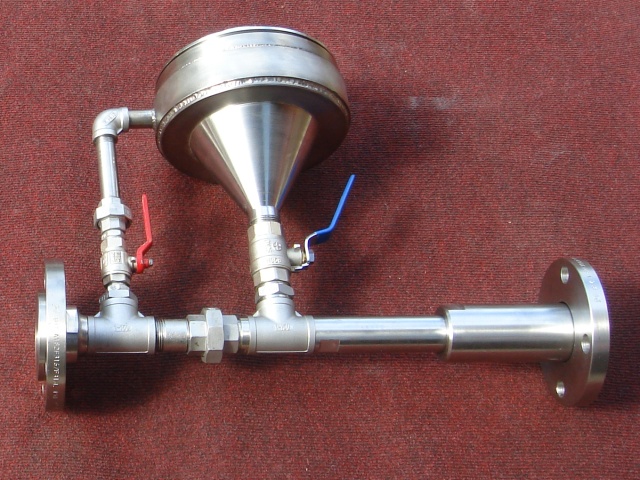

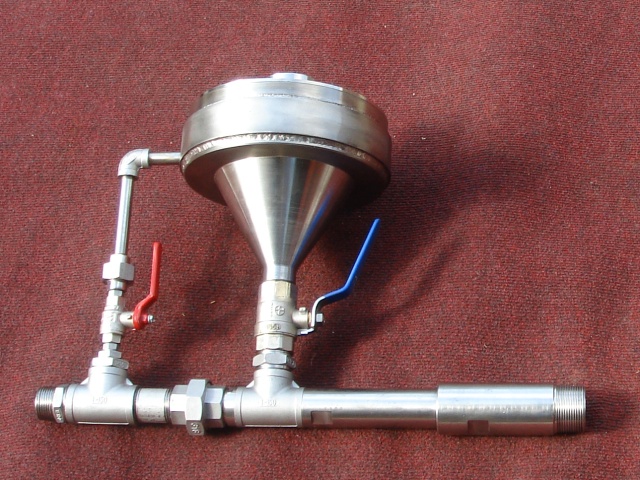

Type 264 Hopper Eductor & Type 217 Hopper Syphon - Typically used to mix and transport powders, granular solids and slurries. See here for further information.

Type 264 Liquid Jet Eductor - Polypropylene Type 264 Liquid Jet Eductor with ANSI 1500Lb Flanges Type 264 Liquid Jet Eductor - Various sizes Type 264 Liquid Jet Eductor - Various sizes
(Click image to enlarge, opens a new window)

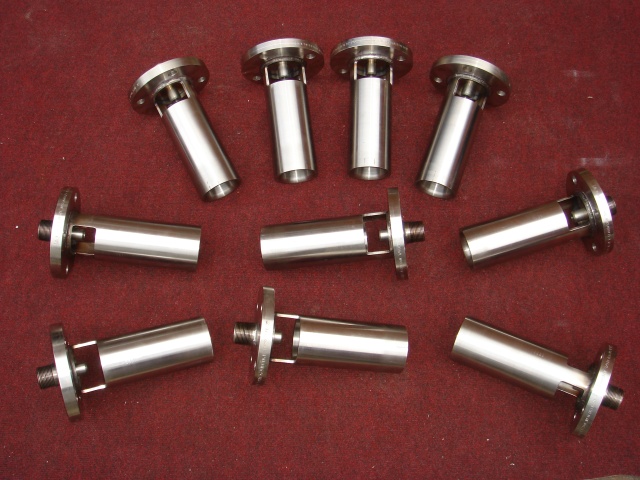

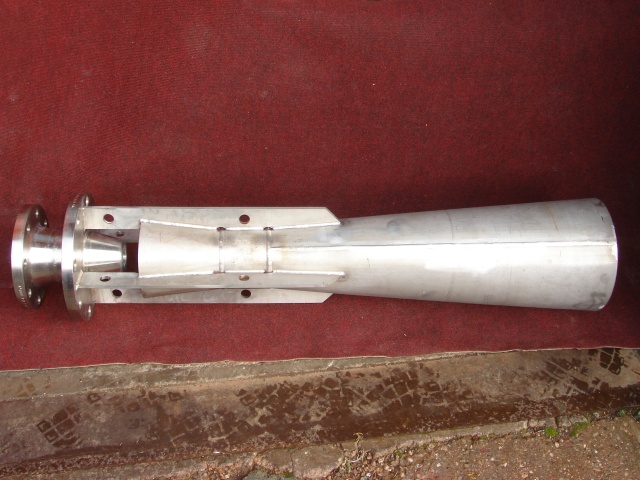

Type 258 & Type 268 Tank Mixing Eductor - Typically mix and agitate tank. See here for further information.

Type 264 Liquid Jet Eductor - Polypropylene Type 264 Liquid Jet Eductor with ANSI 1500Lb Flanges Type 264 Liquid Jet Eductor - Various sizes
(Click image to enlarge, opens a new window)

Steam Jet Heaters

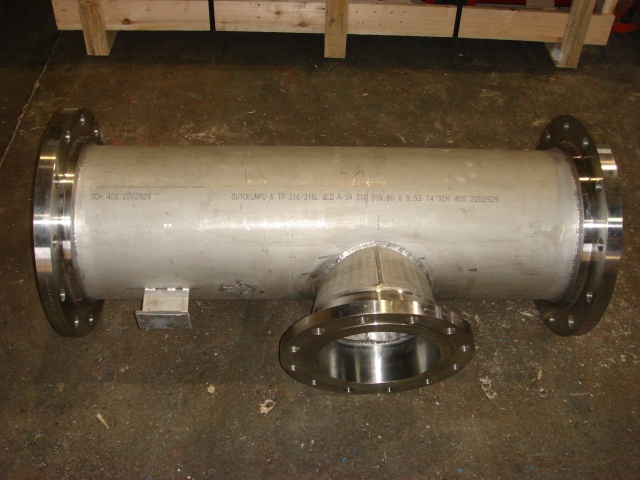

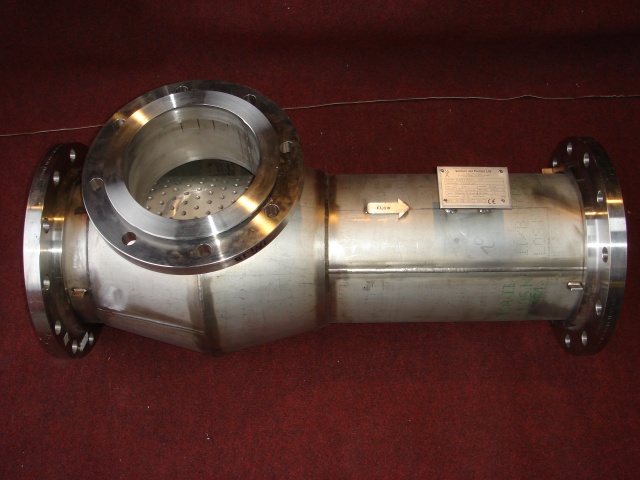

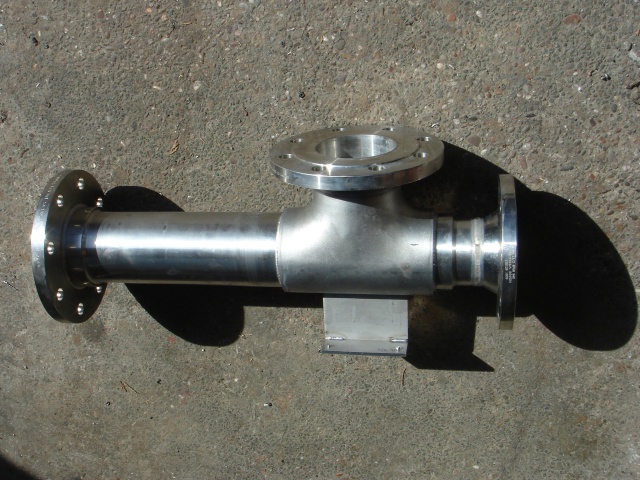

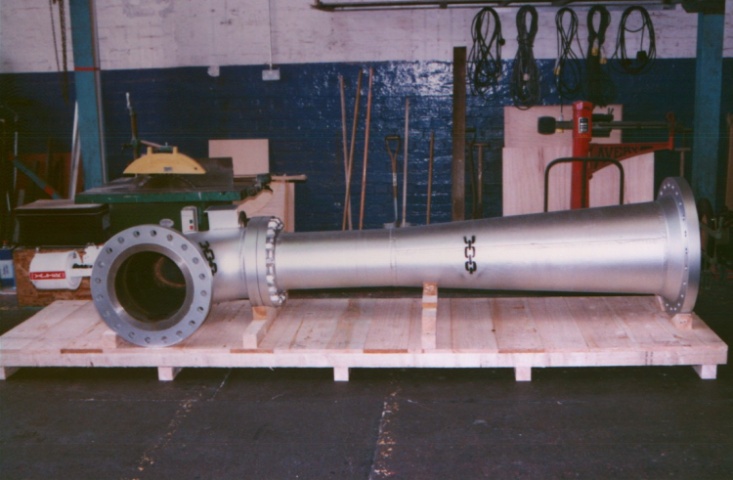

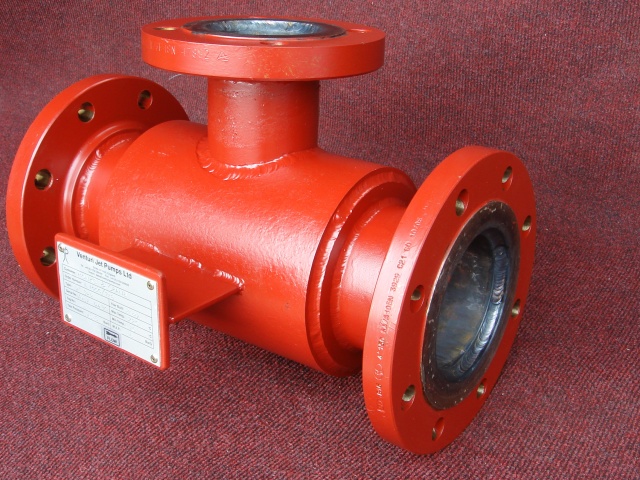

Type 340 & Type 341 Pipeline Heater - Typical used to instantly heat liquids to a predetermined temperature. See here for further information.

Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

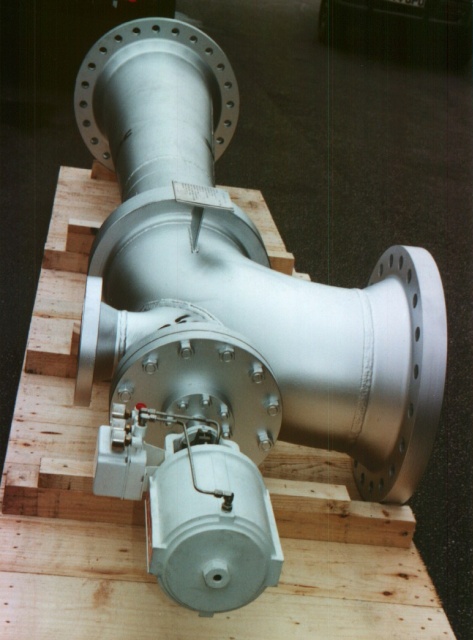

Type 346 Variable Area Heater - This heater was specifically developed to allow wider variation of both water flow rate and steam input. This type of heater allows greater flexibility over the Type 340 and Type 341 Heaters.

Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

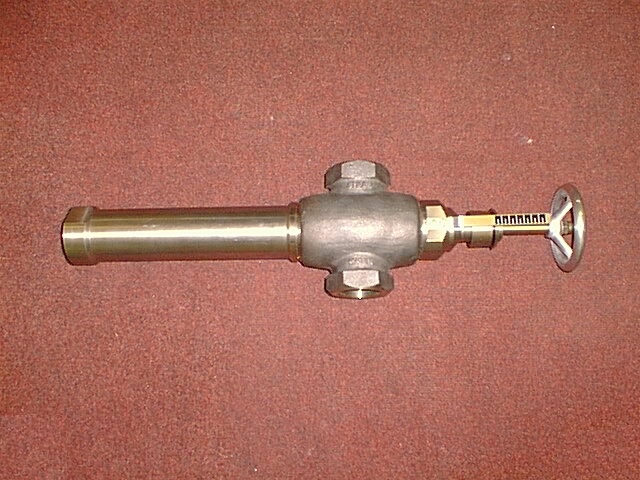

Type 320 Continuous Heater - Typically used to instantly heat liquids to a predetermined temperature. See here for further information.

Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

Jet Compressors & Thermocompressors

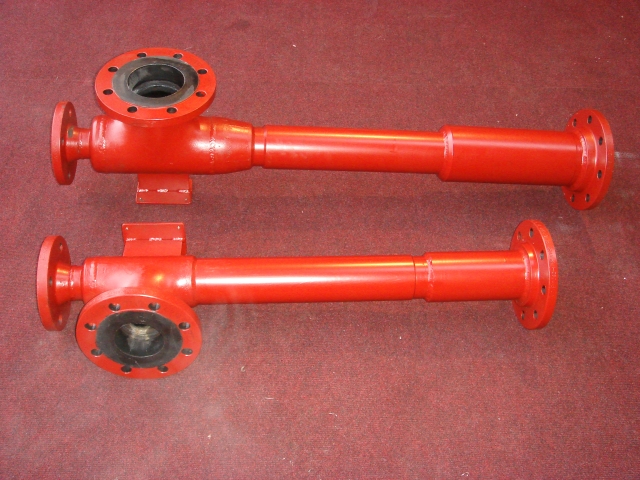

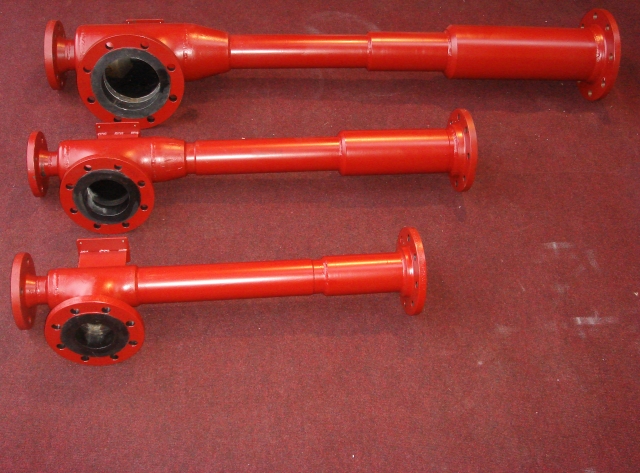

Type 420 Fixed Nozzle Compressor - Typically used to recompress steam or gas where theere is little or no variation in load. See here for further information.

Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

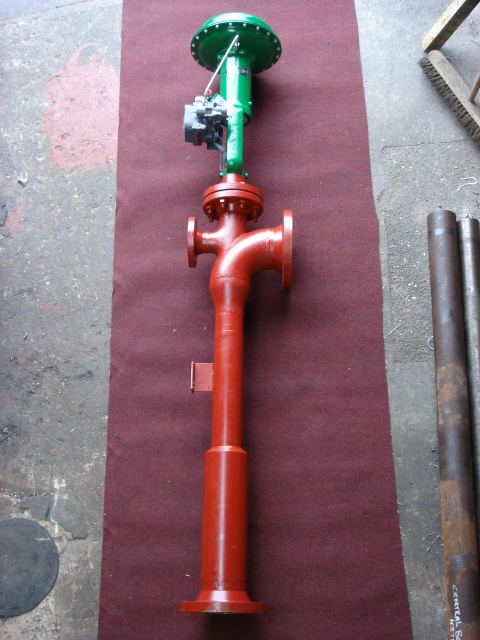

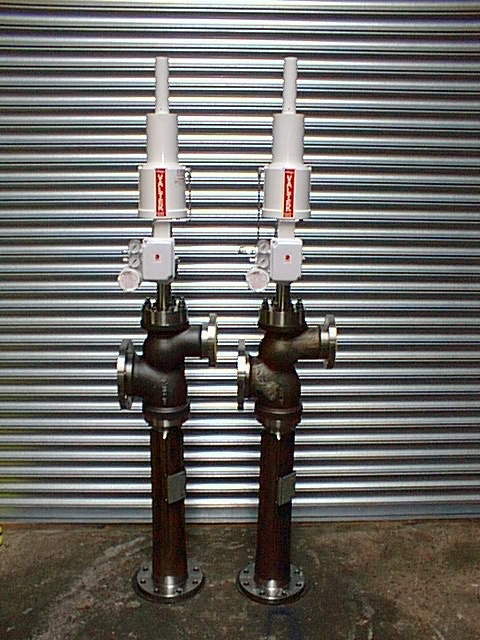

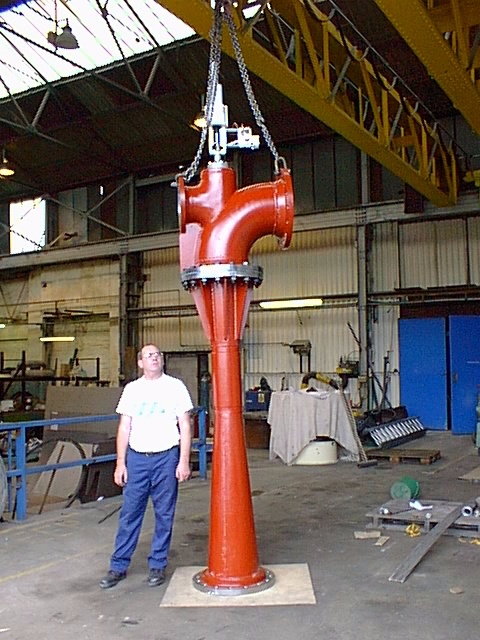

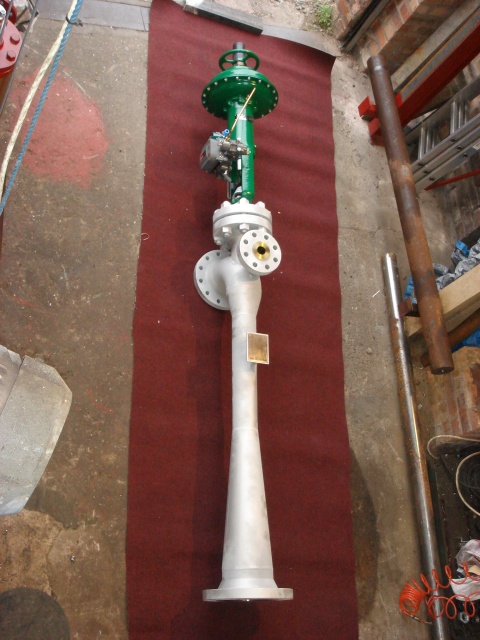

Type 426 Variable Nozzle Thermocompressor - Typically used to recompress steam or gas where there is there is a variation in load. See here for further information.

Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

Vacuum Ejectors & Silencers

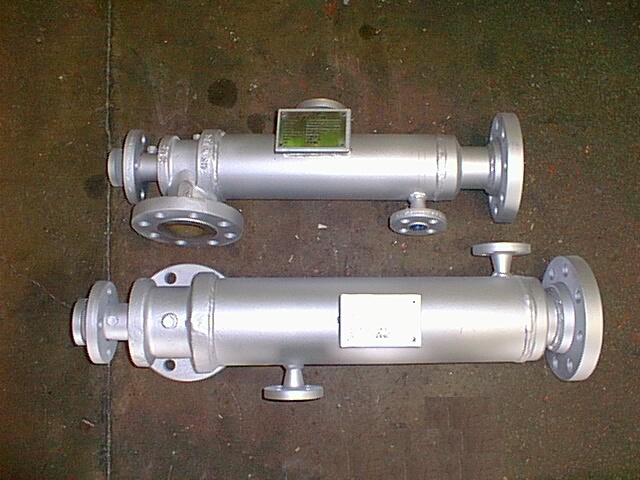

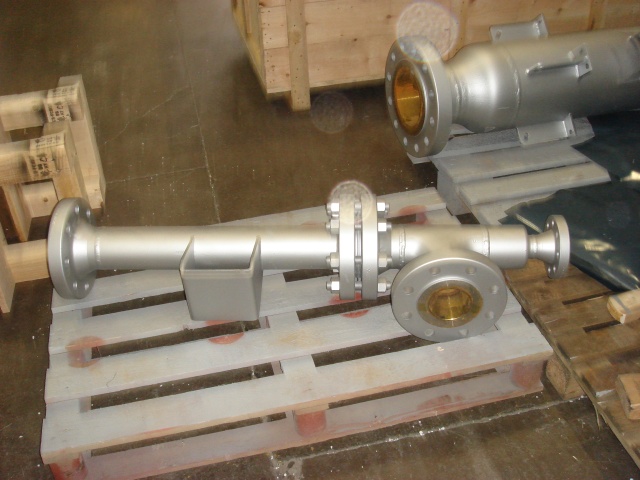

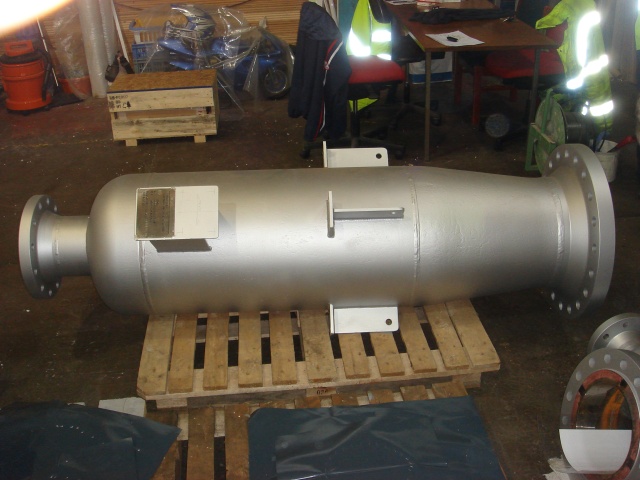

Type 555 Vacuum Ejector & Type 50D1T Silencer - Typically used in order to create high levels of vacuum or evacuate vessels. Units can be equipped with steam jackets (if required) and silencers. See here for further information.

Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

Steam Desuperheaters

Typically used to de-superheat or reduce the overall temperature of steam and gases - See here for further information.

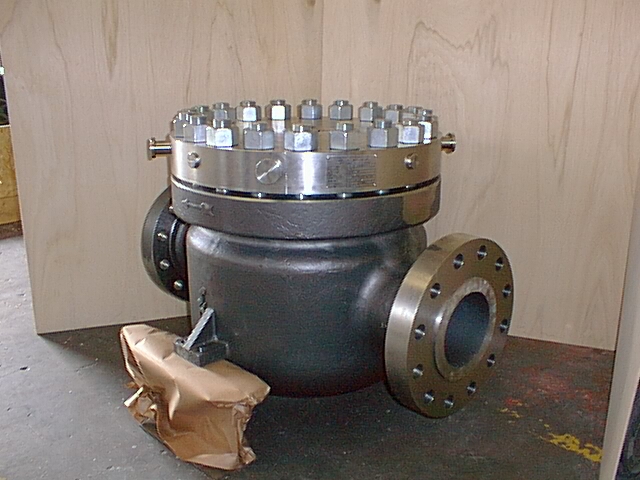

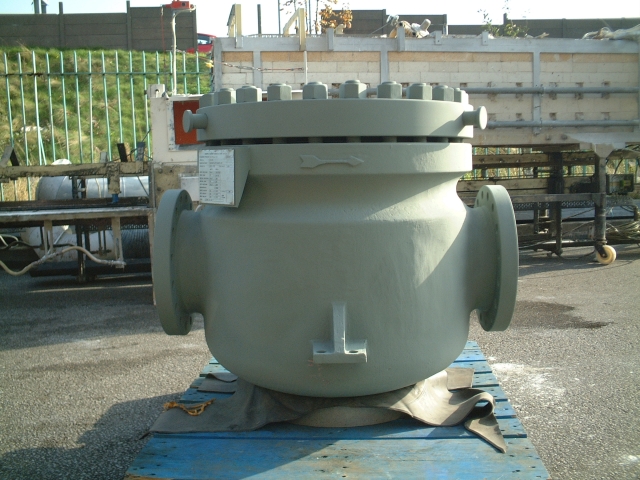

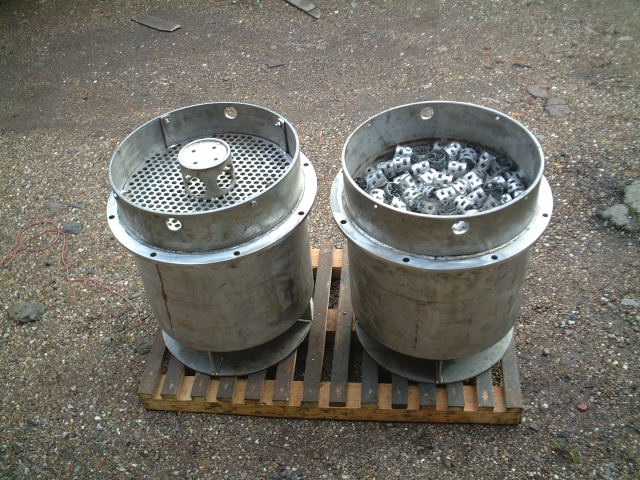

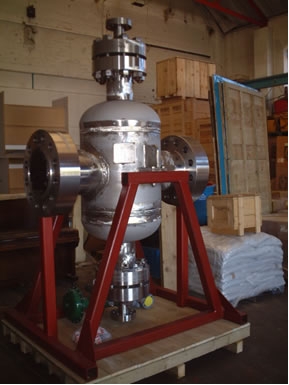

Type 6910 Surface Absorbtion Desuperheater

Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

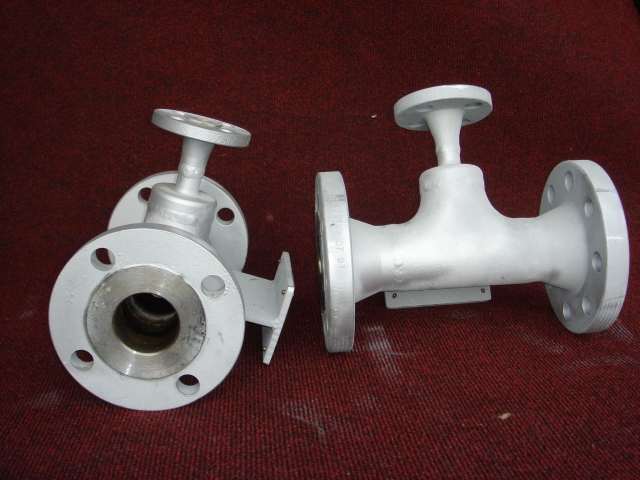

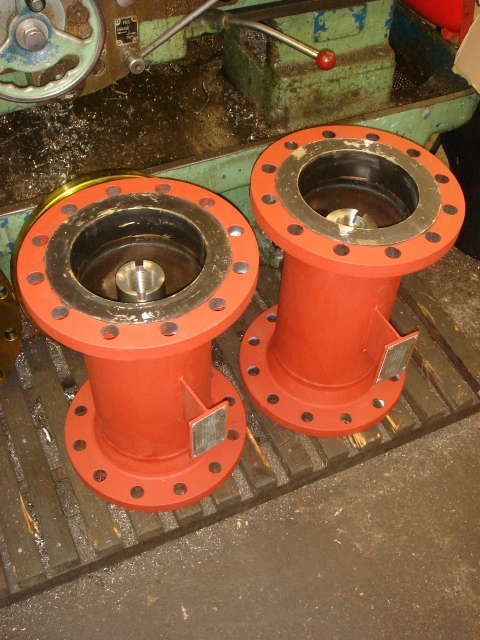

Type 6953 Attemperator Desuperheater

Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)

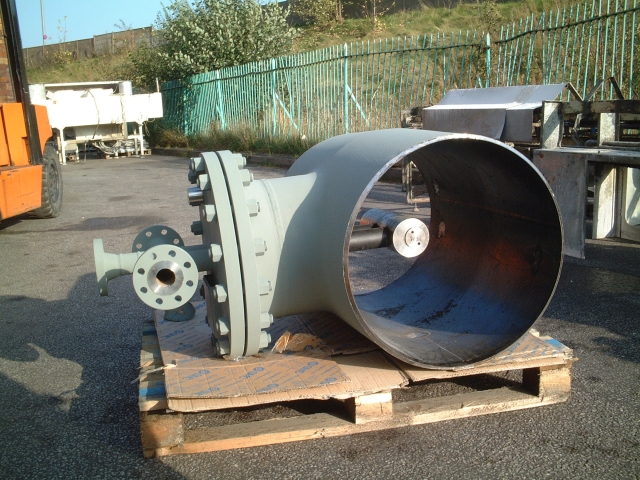

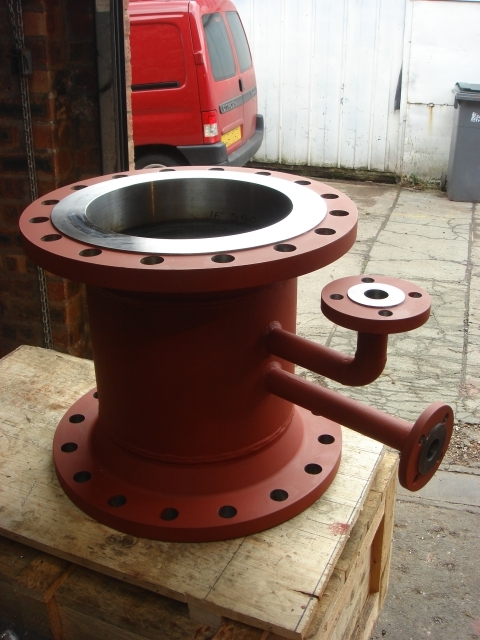

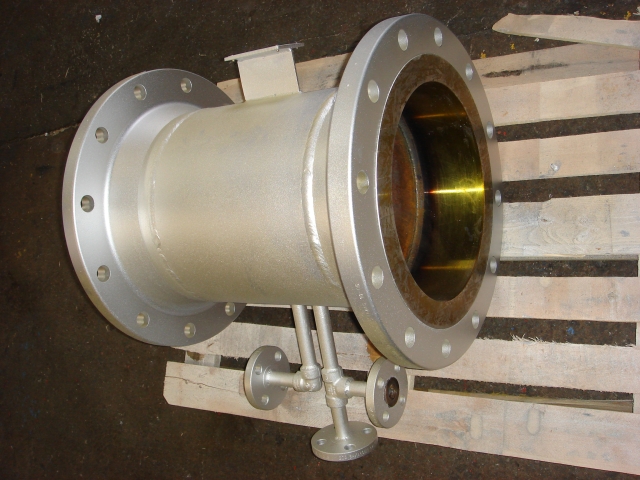

Type 6970 Atomising Desuperheater

Type 220 Inline Syphon Type 220 Inline Syphon Type 220 Inline Syphon
(Click image to enlarge, opens a new window)
